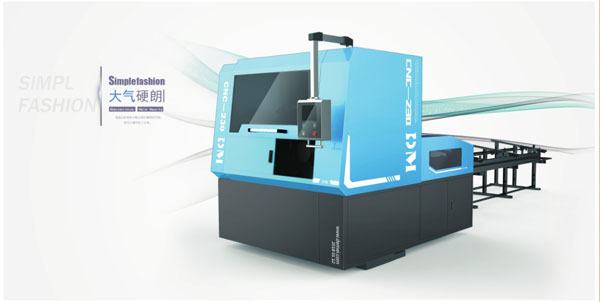

DM-230NC高速金屬圓鋸
| 機型規格 | DM-230NC | ||
|
鋸切能力 Cut-off Capacit |
棒材 | Round bars | Φ120-230mm |
| 角鋼 | Square rod | ∠120-195mm | |
| 圓管 | Round pipe | Φ120-230mm | |
| 方管 | Square pipe | 口120-195mm | |
| 加工長度 | Processing length | 10mm-1000mm | |
|
機頭主軸 Saw Head Spindle |
適用TCT碳化鋼鋸片 | Applicable TCT carbide saw blades | Φ680×3.4t |
| 鋸片回轉數 | Sawblade rotation speed | 20-65rpm | |
| 主軸間隙消除與剎車系統 | Spindle backlash elimination And brake system | 液壓控制 Hydraulic control | |
| 鋸片殘屑清理器 | Chip cleaner | 圓形鋼刷 Round steel brush | |
|
馬達 Moter |
主軸馬達 | Spindle motor | 37.5kw-6P |
| AC伺服馬達(進刀) | AC servo motor(saw) | 1.8kw | |
| AC伺服馬達(GFC送料) | AC servo motor(GFC feed) | 4.4kw | |
| 油壓驅動馬達 | Hydraulic pump motor | 5.5kW | |
| 機頭主軸 | 退刀速度 | Return speed | 100mm/s |
| Saw head spindle | 進刀速度 | Feeding speed | 0~80mm/s |
| Ac伺服送料 AC servo (feed) | 速度 | Speed | 150mm/s-600mms(速度可設置) |
| 集束供料裝置 | 可置材料長度 | Can be set the length of material | 3.5m-6.5m |
| Bundling feeding equipment | 可負載材料重量 | Can be loaded the weight of material | 6500kg/次 |
| 氣壓裝置 Pneumatic Device | 工作氣壓壓力 | Operating air pressure | 0.45-0.7Mpa |
| 油壓裝置 | 工作油壓 | Work operating pressure | 7MPa (MAX) |
| Hydraulic Device | 油箱容量 | Tank capacity | 150L |
| 高速金屬圓鋸機主要部件 | ||
| 序號 | 名稱 | 品牌 |
| 1 | NAME | BRAND |
| 2 | 鋸片 | DEMEI |
| 3 | Saw blade | DEMEI |
| 4 | PLC | 歐姆龍 |
| 5 | PLC | OMRON |
| 6 | 主軸電機 | 皖南電機 |
| 7 | Spindle motor | ANWEI WANNAN |
| 8 | 送料伺服電機 | 日本安川 |
| 9 | Feeding servo moto | JAPAN YASKAWA |
| 10 | 送料伺服驅動器 | 日本安川 |
| 11 | Feeding servo driver | JAPAN YASKAWA |
| 12 | 進刀伺服電機 | 日本安川 |
| 13 | Feed blade servo motor | JAPAN YASKAWA |
| 14 | 進刀伺服驅動器 | 日本安川 |
| 15 | Feed blade servo driver | JAPAN YASKAWA |
| 16 | 馬達保護器 | 日本富士 |
| 17 | Motor protector | JAPAN FUJI |
| 18 | 近接開關 | SUNX |
| 19 | Sensor switch | SUNX |
| 20 | 電磁接觸器 | 日本富士 |
| 21 | Electromagnetic contactor | JAPAN FUJI |
| 22 | 電磁閥 | KEET(日本) |
| 23 | Solenoid valve | EET(JAPAN) |
| 24 | 主軸變速箱軸承 | NSK\FAGISKF |
| 25 | Spindle gearbox bearings | NSK\FAG\SKF |
| 26 | 油缸 | 定制 |
| 27 | Fuel tank | CUSTOMIZED |
| 28 | 觸控屏幕 | 定制 |
| 29 | Touch screen | CUSTOMIZED |
| 30 | 變頻器 | 日本安川 |
| 31 | Frequency converter | JAPAN YASKAWA |
